2-sash slide/fixed
Patio HS can be delivered as 2-sash with a fixed sash and right or left-hung sliding part
Sliding window Patio HS wood 0.5 - 2-sash fixed/sliding, Optional: color black RAL 9005
Sliding window Patio HS wood 0.5 - 3-sash fixed/sliding/fixed, Optional: matt natural pine stain
Sliding window Patio HS wood 0.5 - 3-air sliding/fixed/sliding, Optional: matt natural oak stain
Sliding window Patio HS wood 0.5 - 4-sash fixed/sliding/sliding/fixed, Optional: matt graphite pine stain
Sliding window Patio HS wood 0.5 - 2-sash fixed/sliding, Optional: matt natural pine stain
Patio HS wood with oil 708, seen from the inside
Patio HS wood with oil 708, seen from the outside
Threshold on Patio HS wood, seen from the inside
Patio HS with bronze-colored handle
Bronze-colored bowl handle on Patio HS
Sliding window wood Patio HS
Sliding window
Patio HS has a traditional design where the arch and fixed frame line up, fittings and construction allow for extra large dimensions. Low threshold is standard and it is completely maintenance-free. The fitting is easy to maneuver. Our Patio HS sliding window can be combined with fixed parts that line the top and bottom edges.
Patio HS is available in wood or wood/aluminum with external aluminum cladding with a modern profile.
Choose between 16 different standard colors for the aluminum. Also available in several different exclusive aluminum claddings with e.g. matt structure or in anodized design.
Patio HS Wood 0.5 (system 90): U-value from 0.75 W/(m²K)
Patio HS Wood 1.0 (system 68): U-value from 1.2 W/(m²K)
Can be supplied up to M27 in height.
- U-valuefrom 0.75W/(m²K)
Product files
Technical information
Openings systems
The flexibility is great and all windows are manufactured in millimeter sizes according to your wishes. This window system has the following different opening variations.
Note: The opening systems below are shown with standard profile.
3-sash fixed/slide/fixed
Patio HS can be delivered as a 3-air with two fixed air and a sliding part in the middle
3-sash slide/fixed/slide
Patio HS can be delivered as a 3-air with two sliding parts and a fixed air in the middle
4-sash fixed/slide/slide/fixed
Patio HS can be delivered as 4-sash with two fixed sash and two sliding parts in the middle
Patio HS fixed
Patio HS can be delivered as a fixed window
Patio HS wood 0.5 (system 90)
Patio HS wood 1.0 (system 68)
Standard white
Our standard white is a warmer off white. Ekstrands can also supply neutral white or any chosen colour.
Neutral white
Neutral white is slightly colder compared to our Standard white
RAL 7047
Ekstrand's wooden windows are delivered as standard in standard white. Other standard colors are neutral white, RAL 7047 and RAL 7016, but we can also deliver windows in any color.
RAL 7016
Ekstrand's wooden windows are delivered as standard in standard white. Other standard colors are neutral white, RAL 7047 and RAL 7016, but we can also deliver windows in any color.
Optional colors
Ekstrands can paint in all colors. We recommend RAL as these colors are adapted for outdoor use. Windows can be delivered with different colors on the inside / outside. We offer full warranties even on black windows.
Lacquer MATT natural oak
Lacquer MATT natural pine
Lacquer MATT latte Oak
Lacquer MATT latte Pine
Lacquer MATT hazel Oak
Lacquer MATT hazel Oak
Lacquer MATT driftwood Oak
Lacquer MATT driftwood Oak
Lacquer MATT graphite Oak
Lacquer MATT graphite Pine
Lacquer MATT coffee Oak
Lacquer MATT coffee Pine
Lacquer matt anthracite Oak
Lacquer matt anthracite Pine
Lacquer MATT black Oak
Lacquer MATT black Pine
lacquer matt white transparent pine
Lacquer 5063 Oak
Lacquer 5063 Pine
Lacquer 5056 Oak
Lacquer 5056 Pine
Lacquer 5062 Oak
Lacquer 5062 Pine
Lacquer 5065 Oak
Lacquer 5065 Pine
Lacquer 5059 Oak
Lacquer 5059 Pine
Lacquer 1519 Oak
Lacquer 1519 Pine
Lacquer 0044 Oak
Lacquer 0044 Pine
Lacquer 1040 Oak
Lacquer 1040 Pine
Lacquer 5219 Oak
Lacquer 5219 Pine
Lacquer 5067 Oak
Lacquer 5067 Pine
Lacquer 0022 Oak
Lacquer 0022 Pine
Lacquer 0046 Oak
Lacquer 0046 Pine
Lacquer 1710 Oak
Lacquer 1710 Pine
finger joints on oak stained windows
Stained oak windows with a length/width of up to 2 meters can be delivered without finger joints.
Between 2-3 meters delivered with 2 finger joint. Over 3 meters delivered with 3 finger joints.
Finger joints on pine stained windows
Stained pine windows with a length/width of up to 2 meters can be delivered without joints.
Between 2-3 meters delivered with 1 joint. Over 3 meters delivered with 2 joints.
+2
Standardhandtag
Handtag till skjutparti Patio Panorama och Patio HS
+1
FSB 1004
Designhandtag från FSB till skjutparti Patio Panorama och Patio HS
+1
FSB 1076
Designhandtag från FSB till skjutparti Patio Panorama och Patio HS
+2
FSB 1267
Designhandtag från FSB till skjutparti Patio Panorama och Patio HS
SP: Removable astragals
SP is a standard wooden astragal mounted on the outside with genuine carpenter's crosses. The astragal is removable and is locked with smart hook fittings. Delivered mounted on the window.
WSP: Vienna astragals
Vienna astragals is an exclusive wooden astragal where the astragal is glued on both sides of the glass with a thin aluminum profile between the glasses. For 2-color painted windows, this is the best option. Available straight & profiled. Works best with 2-glass panes.
RSP: Ramspröjs
Astragals on a frame is an exclusive astragal that is hinged to the window frame. Used mainly on curved windows and on windows with many sashes. Best suited for inward opening windows.
GDP: Glass dividing bar
Ekstrand's glass dividing bars are genuine. We divide the glass pane, which gives a wooden post on both inside and outside. Delivered in 58mm or 78mm width on the Europa window and 68mm or 92mm on EC/90 wood.
Classic astragal example
The astragal division can be done in many different ways. Talk to us for tips and advice!
Classic astragal example
The astragal division can be done in many different ways. Talk to us for tips and advice!
Astragal example flag
The astragal division can be done in many different ways. Talk to us for tips and advice!
Glass strip straight
You can choose between straight or profiled glass strip on the inside.
Profiled glazing beads are standard on system 68 and system 78 as well as outward-opening windows Tradition.
Straight glazing beads are standard on system 92.
Glass strip straight
You can choose between straight or profiled glass strip on the inside.
Straight glazing beads are standard on system 92.
Profiled glazing beads are standard on system 68 and system 78 as well as outward-opening windows Tradition.
Spacer strip white 9016
Color selection on spacers between glass is an important detail on windows that many do not think about. White is standard on white windows and gray on all others. The following colors can be chosen at no extra cost: White 9016, gray 7035, gray 7040, brown 8003, brown 8016, black 9004.
Spacer strip grey 7035
Color selection on spacers between glass is an important detail on windows that many do not think about. White is standard on white windows and gray on all others. The following colors can be chosen at no extra cost: White 9016, gray 7035, gray 7040, brown 8003, brown 8016, black 9004.
Spacer strip grey 7040
Color selection on spacers between glass is an important detail on windows that many do not think about. White is standard on white windows and gray on all others. The following colors can be chosen at no extra cost: White 9016, gray 7035, gray 7040, brown 8003, brown 8016, black 9004.
Spacer strip brown 8003
Color selection on spacers between glass is an important detail on windows that many do not think about. White is standard on white windows and gray on all others. The following colors can be chosen at no extra cost: White 9016, gray 7035, gray 7040, brown 8003, brown 8016, black 9004.
Spacer strip brown 8016
Color selection on spacers between glass is an important detail on windows that many do not think about. White is standard on white windows and gray on all others. The following colors can be chosen at no extra cost: White 9016, gray 7035, gray 7040, brown 8003, brown 8016, black 9004.
Spacer strip black 9004
Color selection on spacers between glass is an important detail on windows that many do not think about. White is standard on white windows and gray on all others. The following colors can be chosen at no extra cost: White 9016, gray 7035, gray 7040, brown 8003, brown 8016, black 9004.
Energy effective glass
The U-value changes with which glass construction is used. In each product group there are several different alternatives from a U-value of 1.3W/(m²K) to below 0.8W/(m²K).
Solar protective glass
Solar protective glass is used when you want to prevent radiant heat. We offer a number of different options.
Safety glass
Safety glass is laminated or tempered glass. Tempered windows are used for personal safety and laminated windows are available in a number of different classes for burglary protection.
Download PDF about the National Board of Housing, Building and Planning's building rules regarding personal safety here >>
EI30 fire rated window
EC/90 can also be delivered with CE-certified fire class EI30. The window can be delivered as 1-sash and 2-sash side-hung inwards opening with dreh-kip function, as a balcony door and double balcony door, as well as in a fixed version. The U-value of EC/90 EI30 is U=1.2W/(m²K)
Sound reducing glass
Trains, car traffic, city buses or other disturbances can be reduced with the right choice of glass combination. Reductions of 36, 37 or 40dB can be achieved with sound reducing glass. Ekstrands also has a tested sound reducing window, EC/90 SR46.

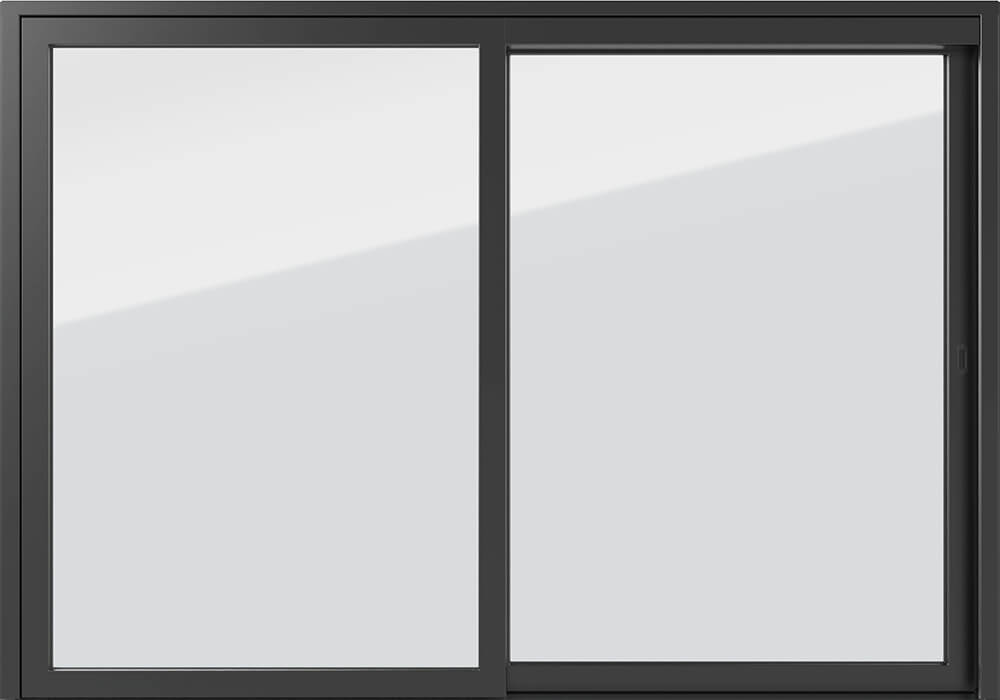

PATIO HS IN SIZE M35x25
PATIO HS WOOD/ALU IN SIZE M35x25
INSPIRATION
PATIO HS
