Energy effective glass
The U-value changes with which glass construction is used. In each product group there are several different alternatives from a U-value of 1.3W/(m²K) to below 0.8W/(m²K).
Sliding window Patio HS wood/aluminum 2-sash fixed/sliding, Optional: color black RAL 9005
Sliding window Patio HS wood/aluminum 3-air fixed/sliding/fixed
Sliding window Patio HS wood/aluminum 4-sash fixed/sliding/fixed/sliding, optional: color black RAL 9005
Sliding window Patio HS wood/aluminum 3-sash sliding/fixed/sliding, optional: Anodized aluminum C33
Sliding window Patio HS wood/aluminum fixed, Optional: color black RAL 9005
Sliding window Aluminium Patio HS
The sliding section Patio HS has a traditional design where the sash and fixed frame line up, fittings and construction allow for extra large dimensions. A low threshold is standard and it is completely maintenance-free. The fittings are easy to operate. Our sliding window Patio HS can be combined with fixed sections that line up at the top and bottom.

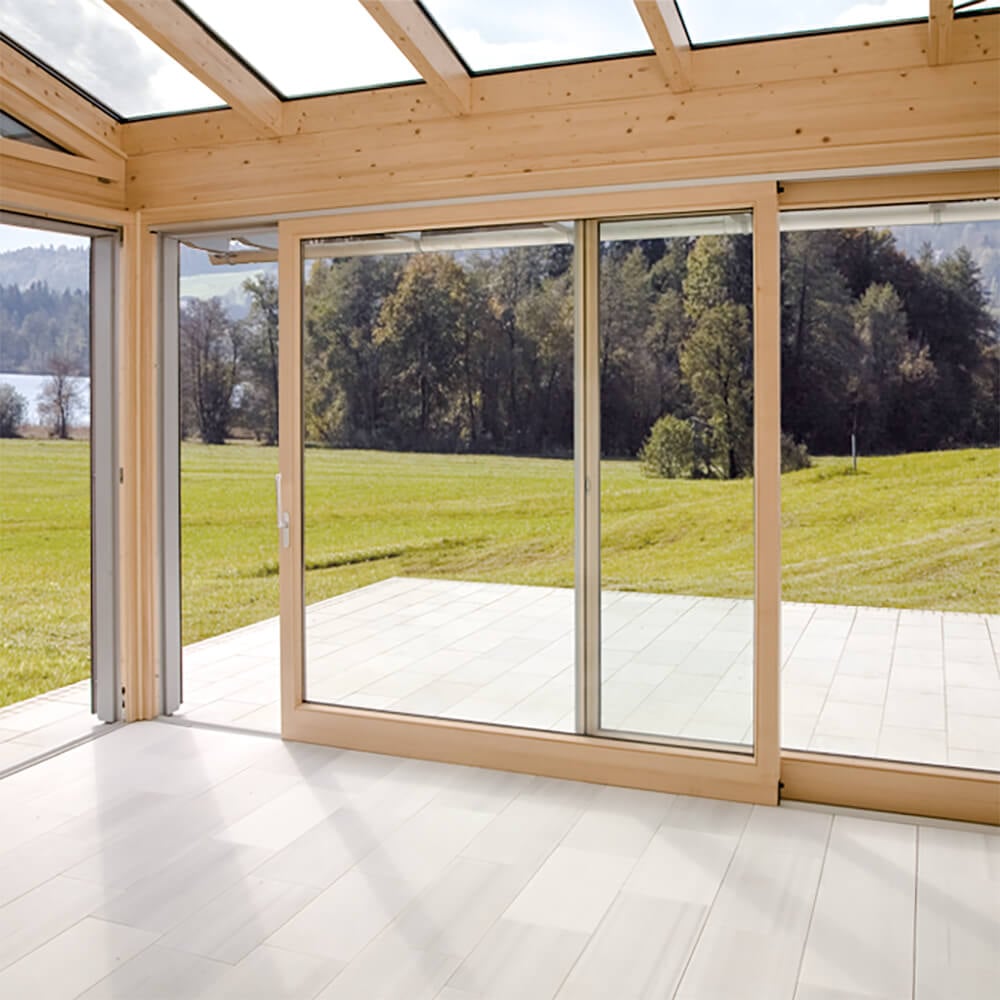

Patio HS is available in wood or wood/aluminium with external aluminium cladding with a modern profile.
Choose between 16 different standard colours for the aluminium. Also available in several different exclusive aluminium claddings with e.g. matt structure or in an anodised design.

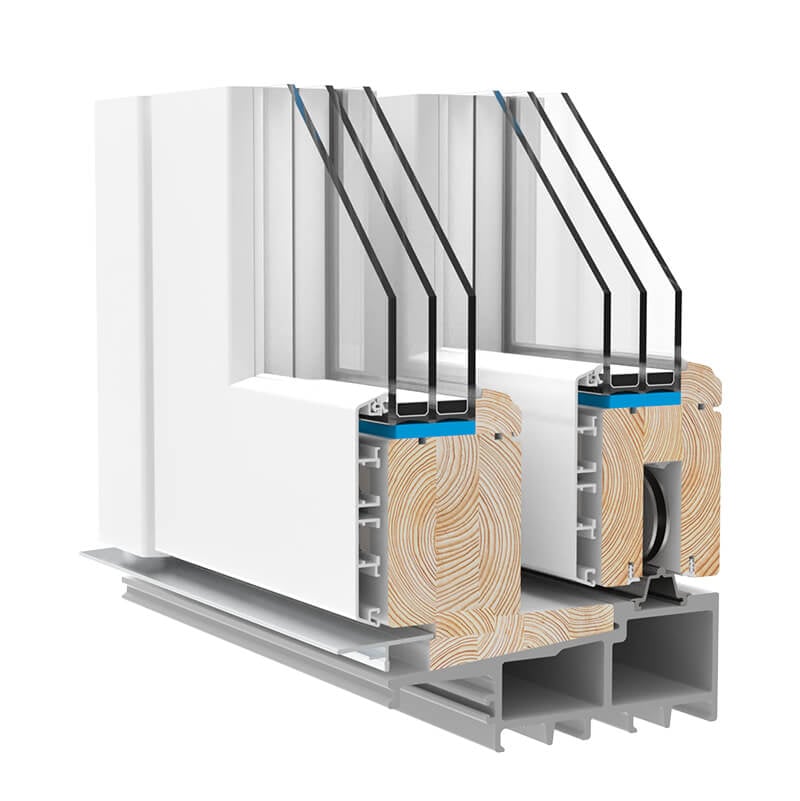

Patio HS Wood/Aluminium: U-value from 0.82 W/(m²K)
Can be delivered up to M27 in height.
- U-valuefrom 0.75W/(m²K)
Product files
Technical information
Options
There are several different options to choose from at Ekstrands, here we show some of the most common.
Solar protective glass
Solar protective glass is used when you want to prevent radiant heat. We offer a number of different options.
Safety glass
Safety glass is laminated or tempered glass. Tempered windows are used for personal safety and laminated windows are available in a number of different classes for burglary protection.
Download PDF about the National Board of Housing, Building and Planning's building rules regarding personal safety here >>
Sound reducing glass
Trains, car traffic, city buses or other disturbances can be reduced with the right choice of glass combination. Reductions of 36, 37 or 40dB can be achieved with sound reducing glass. Ekstrands also has a tested sound reducing window, EC/90 SR46.
2-sash slide/fixed
Patio HS can be delivered as 2-sash with a fixed sash and right or left-hung sliding part
3-sash slide/fixed/slide
Patio HS can be delivered as a 3-air with two sliding parts and a fixed air in the middle
3-sash fixed/slide/fixed
Patio HS can be delivered as a 3-air with two fixed air and a sliding part in the middle
4-sash fixed/slide/slide/fixed
Patio HS can be delivered as 4-sash with two fixed sash and two sliding parts in the middle
Patio HS fixed
Patio HS can be delivered as a fixed window
Patio HS wood/aluminium
Ekstrands standard colors
We have a number of selected standard colors that are developed for optimal light and weather resistance, these are classic comfortable colors that do extremely well on exterior doors. Feel free to visit our exhibitions to see the colors on doors in real life.
Optional colors
Ekstrands can paint in all colors. We recommend RAL as these colors are adapted for outdoor use. Windows can be delivered with different colors on the inside / outside. We offer full warranties even on black windows.
alu structured matt
We offer a selection of colors with a matt structured surface on aluminum cladding. These are pleasant colors that work extremely well on aluminum windows. Feel free to visit our exhibitions to see the colors in real life.
Anodized aluminium
Ekstrands can also offer anodized aluminum surfaces. The colors are reminiscent of bronze and graphite and fit today's modern design with natural material choices and color scheme with earthy colors. Anodised aluminum has variations in shade and there may be shifts within one and the same delivery. If you like the color that the anodizing gives but can not accept the natural color changes, then there is also a powder coated color that should mimic the anodizing.
Standard white & Neutral white
Our standard white is slightly broken. Ekstrands can also supply neutral white or any color.
Lacquer MATT natural oak / pine
Lacquer MATT latte Oak / Pine
Lacquer MATT hazel Oak / Pine
Lacquer MATT driftwood Oak / Pine
Lacquer MATT graphite Oak / Pine
Lacquer MATT coffee Oak / Pine
Lacquer matt anthracite Oak / Pine
Lacquer MATT black Oak / Pine
lacquer matt White Pine
Lacquer fully matt natural Oak / Pine
Only for wooden/aluminum windows
Lacquer fully matt hazel Oak / Pine
Only for wooden/aluminum windows
Lacquer fully matt stone Oak / Pine
Only for wooden/aluminum windows
Lacquer fully matt white Pine
Only for wooden/aluminum windows
Lacquer 5063 Oak / Pine
Lacquer 5056 Oak / Pine
Lacquer 5062 Oak / Pine
Lacquer 5065 Oak / Pine
Lacquer 1519 Oak / Pine
Lacquer 0044 Oak / Pine
Lacquer 1040 Oak / Pine
Lacquer 5219 Oak / Pine
Lacquer 5067 Oak / Pine
Lacquer 0022 Oak / Pine
Lacquer 0046 Oak / Pine
Lacquer 1710 Oak / Pine
Lacquer 5059 Oak / Pine
finger joints on oak stained windows
Stained oak windows with a length/width of up to 2 meters can be delivered without finger joints.
Between 2-3 meters delivered with 2 finger joint. Over 3 meters delivered with 3 finger joints.
Finger joints on pine stained windows
Stained pine windows with a length/width of up to 2 meters can be delivered without joints.
Between 2-3 meters delivered with 1 joint. Over 3 meters delivered with 2 joints.
+2
Standardhandtag
Handtag till skjutparti Patio Panorama och Patio HS
+1
FSB 1004
Designhandtag från FSB till skjutparti Patio Panorama och Patio HS
+1
FSB 1076
Designhandtag från FSB till skjutparti Patio Panorama och Patio HS
+2
FSB 1267
Designhandtag från FSB till skjutparti Patio Panorama och Patio HS
SP: Removable astragals
SP is a standard wooden astragal mounted on the outside with genuine carpenter's crosses. The astragal is removable and is locked with smart hook fittings. Delivered mounted on the window.
SPA: Removable aluminium astragal
SPA removable aluminum astragals on the outside. The astragal is removable, and is delivered mounted on the window.
WSP: Vienna astragals
Vienna astragals is an exclusive wooden astragal where the astragal is glued on both sides of the glass with a thin aluminum profile between the glasses. For 2-color painted windows, this is the best option. Available straight & profiled. Works best with 2-glass panes.
WSPA: Vienna astragal wood/alu
Vienna astragal wood/alu is an exclusive astragal in wood on the inside and aluminum on the outside where the astragal is glued on both sides of the glass with an aluminum profile between the glasses. For 2-color painted windows, this is the best option. Works best with 2-glass panes.
RSP: Ramspröjs
Astragals on a frame is an exclusive astragal that is hinged to the window frame. Used mainly on curved windows and on windows with many sashes. Best suited for inward opening windows.
ASP: Aluminium astragals
Aluminum astragals between the glasses are mainly used on aluminum-clad windows and PVC. Delivered as standard in 26mm width but available in several designs and colours. Works best with 2-glass panes.
GDP: Glass dividing bar
Ekstrand's glass dividing bars are genuine. We divide the glass pane, which gives a wooden post on both inside and outside. Delivered in 58mm or 78mm width (84mm on PVC).
Classic astragal example
The astragal division can be done in many different ways. Talk to us for tips and advice!
Classic astragal example
The astragal division can be done in many different ways. Talk to us for tips and advice!
Astragal example flag
The astragal division can be done in many different ways. Talk to us for tips and advice!
PATIO HS IN SIZE M35x25
PATIO HS WOOD/ALU IN SIZE M35x25
