Wood/Aluminum Modern outward-opening balcony door

Wood/Aluminum Modern outward-opening window door, inside

Wood/Aluminum Modern outward-opening window door

1 / 7

Balcony door aluminium outwards opening modern

Modern wood/aluminium

U-value
from 0.86 W/(m²K)

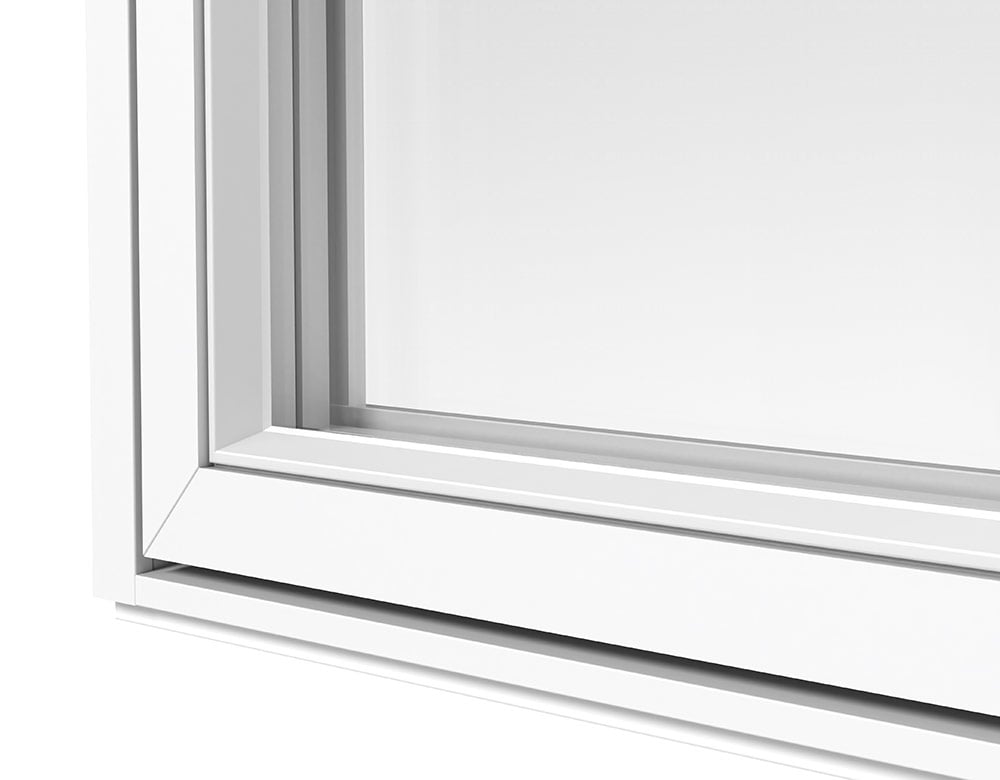

A modern outward-opening window door. The frame and frame are only 108 mm together, the external aluminum profile is designed to create the impression of a classic wooden window door. On the inside, the window door has straight profiles. Grey rubber strip and white spacer between the glasses are standard on white-painted window doors. The product fits both modern houses and typical Swedish wooden house construction.

The range of options is limited on this particular model, talk to one of our salespeople if you have special requests.

Technical information

Available options

Configure accessories

Ekstrands paints in all RAL and NCS colors. We recommend RAL as these colors are adapted for outdoor use. Windows can be made with different colours on the inside and outside. We also have a wide selection of lacquers on windows in solid oak or pine. Please note that colours can not be reproduced exactly on screen, please contact us to order samples or visit our showrooms.

Standard color white
The interior is painted in white NCS s0502-Y as standard, the exterior in RAL9010
Black aluminum cladding
The aluminum cladding on the outside can also be supplied in black RAL 9005.
Optional colors
Ekstrands paints in all available color codes. We recommend RAL as these colors are suitable for outdoor use.

Standard
Wood/Alu Modern has a 3-glazed window with a U-value of 1.1W/(m²K). Energy glass: 3-glazed cassettes T4-18 with warm edge and argon filling. All fully glazed window doors have tempered glass as standard
U-value of 0.86
Wood/Aluminum Modern can also be ordered with a lower U-value of 0.86W/(m²K).

The flexibility is great and all windows are manufactured in millimeter sizes according to your wishes. This window system has the following different opening variations.

Note: The opening systems below are shown with standard profile.

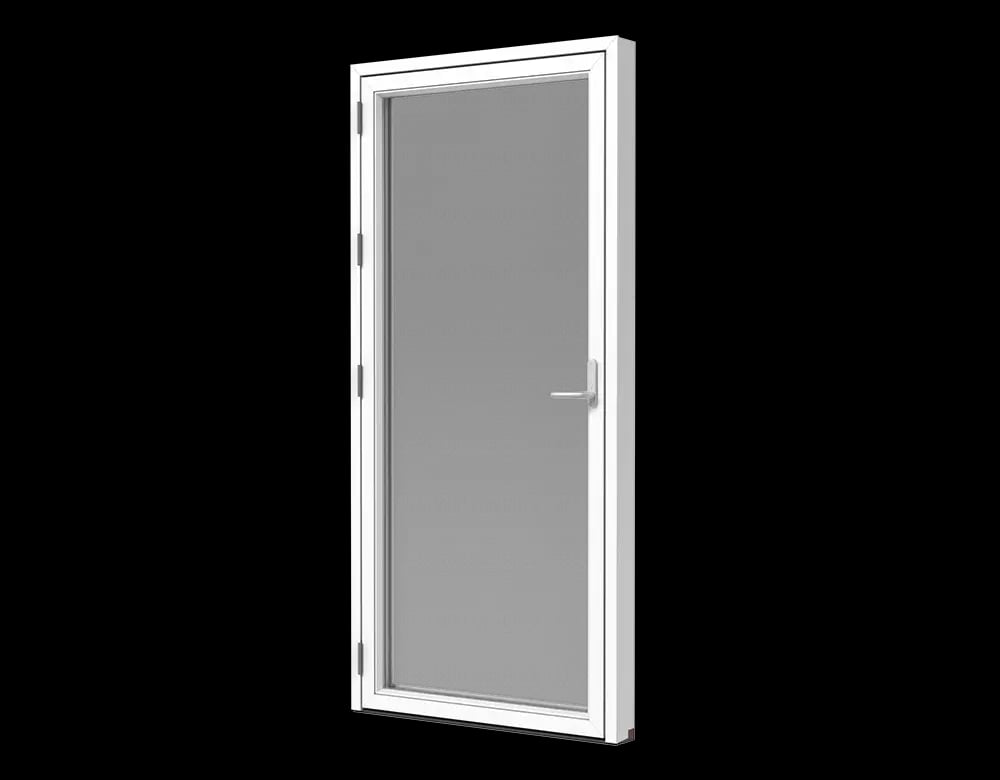

1-sash balcony door
The French door is equipped with a drop piston espagnolette that is easily operated with one hand. All fully glazed French doors have an internal handle with locking knob and tempered glass as standard.
2-sash double balcony door
Outward opening double French window doors are available in most width and height dimensions and are adapted to the customer's wishes. A double French window door is fully glazed as standard. The range of options is limited on this particular window model, talk to one of our salespeople and hear what we can offer.

We offer a wide range of quality handles and fittings. The handles shown are available in most finishes or colours. However, not all are shown in all the colours they are available in. Click on the respective handle to read more.

See all our handles here >>

Standardhandtag fönsterdörr trä/alu modern
Standardhandtag till fönsterdörr trä/alu modern. Handtag Hoppe Tokyo med långskylt av aluminium till fönsterdörr med låsbar spanjolett. Handtag och vred på insidan, handtag på utsidan.

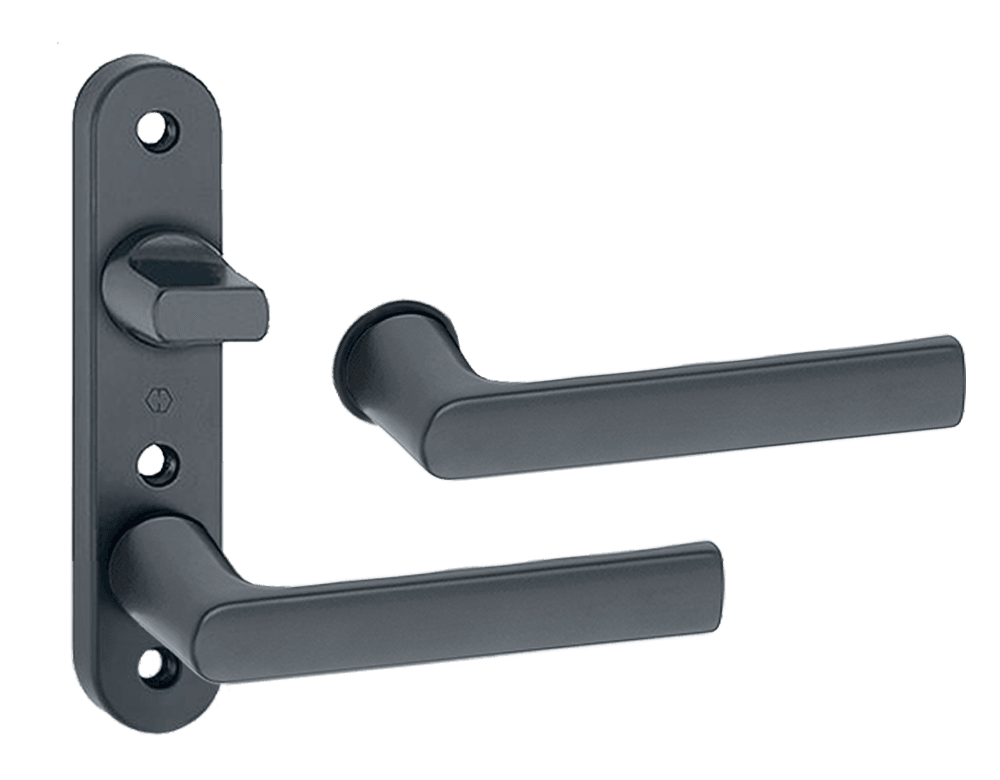

Hoppe Hamburg med minirosett fönsterdörr trä/alu modern
Hoppe Hamburg med minirosett till fönsterdörr trä/alu modern, långskylt med låsbar spanjolett på utsidan. Handtag och vred på insidan, handtag på utsidan. Finns i F9714M svart och Alu F1.

Select a handle to see available surface treatments.

Ekstrands can offer several different astragal options. Our wooden astragals are made of knot-free wood and are mounted on the window upon delivery. For 2-color painting, we recommend Vienna astragals as this allows the right color of the bar from the inside. See below which sash options are available for this window.

SPM: Removable aluminium astragal
SPM removable aluminum astragals on the outside. The astragal is removable, and is delivered mounted on the window.

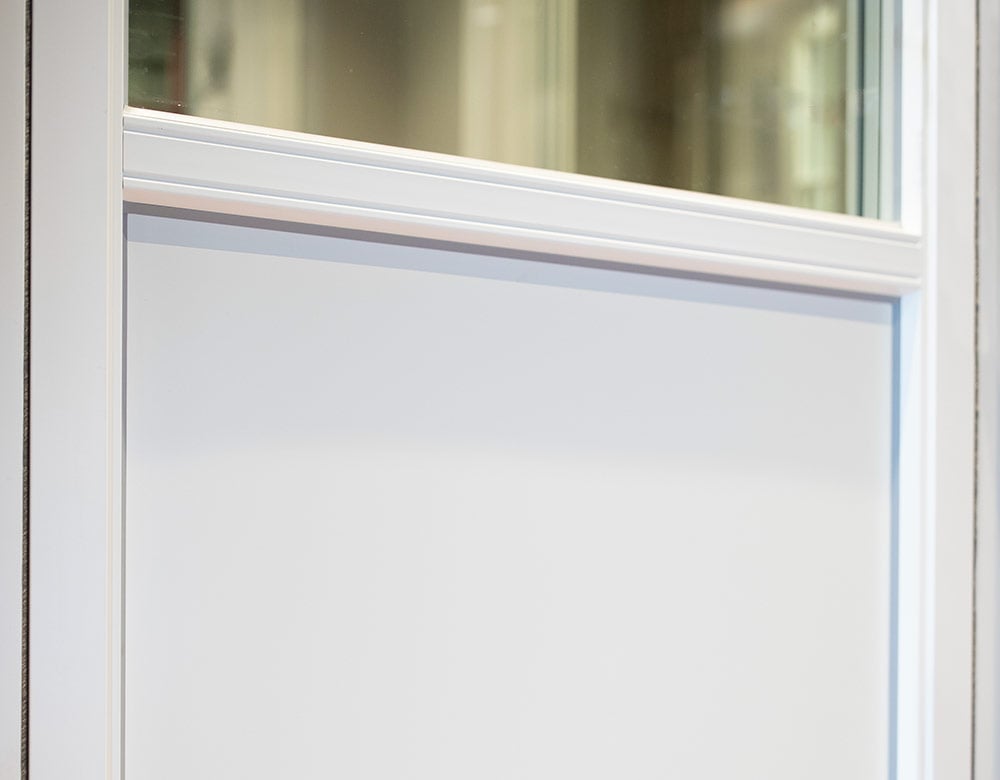

Glass dividing bar and parapet
You can choose glass dividing post or parapet.
